Riveting bolt visual screening machine

by
Case

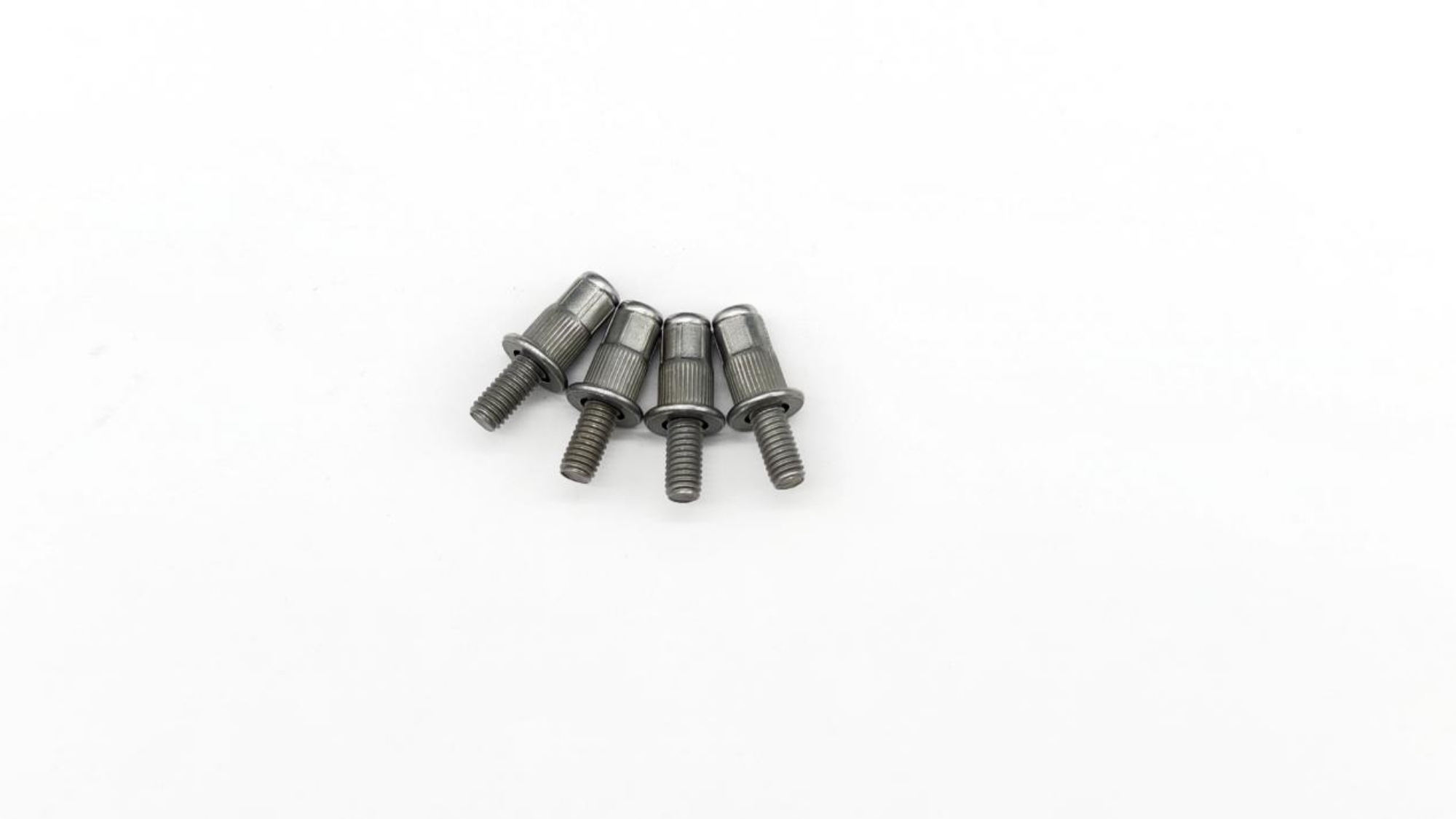

Riveting bolt visual screening machine, the machine adopts vibrating disk feeding, equipped with artificial intelligence visual detection software, equipped with 4 CCD industrial cameras, according to customer requirements, can detect whether the key dimensions of the product, head diameter, outside diameter, height, etc. meet the requirements of the drawing, and whether the surface of the product exists, leakage bar, press bar dislocation and other appearance defects. The detection speed is 400pcs/min, and the detection accuracy is ±0.02mm



Thank you for your trust in RKE Intelligent Technology Co., Ltd. We will provide you as following:

Item

Product

Specification



Optical Sorting machine-RK1500-C4

1. Inspection Component: size / appearance defective

2. Camera : Hi-Vison Color CCD (200w)
3. Light Source: RGB cascade multi-angle LED combination lighting, high brightness, 2M pixels tele-centric lens, 50*50mm
4. Motor：Japan Panasonic
5. Computer: Dell 2.7G, DDR II 2.0G, 500G , 19″ wide screen LCD
6. Software: RKE self-developed（based on labview）
7. Solenoid valve: American Newmandick solenoid valve
8. Power: 220V/50Hz ,1000W
9. Accuracy :  ± 0.01mm
10. Detect Speed : 400pcs/min

11.Machine  size: 990*860*1860(2150)mm,Weight: 355KGS

12. Vibrating Device  size: 650*800*1350mm, Weight:  255kgs
