Hex flange bolts are widely used in automotive, machinery and industrial applications. Their threaded body, hexagonal head and integrated flange require consistent dimensions and appearance for reliable assembly.
Machine Vision Inspection provides an automated way to check these features during fastener production. By using industrial cameras, controlled lighting and image analysis, different inspection points can be checked consistently.
A typical inspection process may include:
- Thread appearance and condition
- Hexagonal head shape and dimensions
- Flange diameter and profile
- Overall length and bolt diameter
- Surface appearance
- Burrs and scratches
- Missing or abnormal features
- Dimensional consistency
These inspection points can help identify common defects and dimensional variations before products move to the next production stage.
How Machine Vision Inspection Works

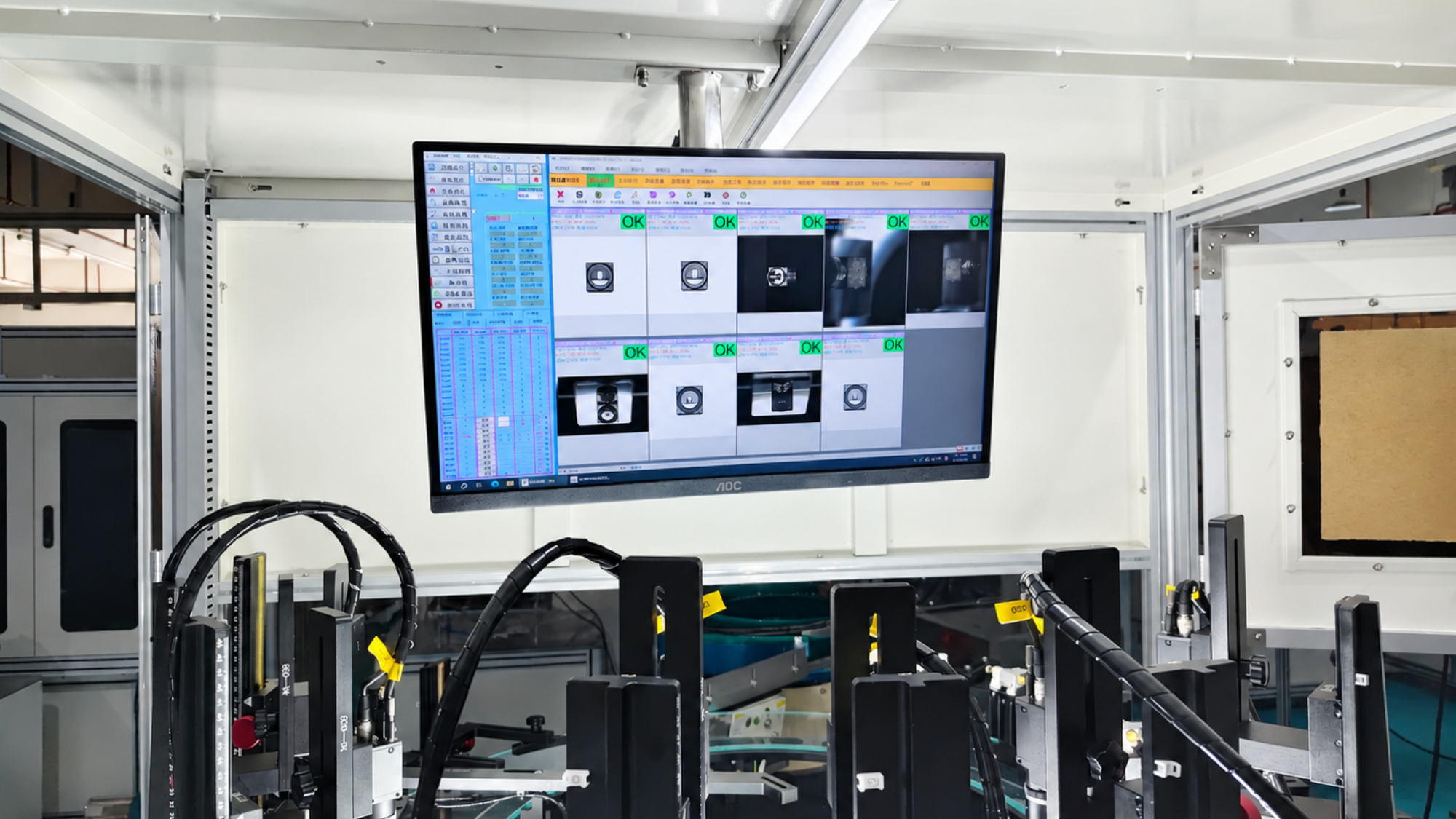

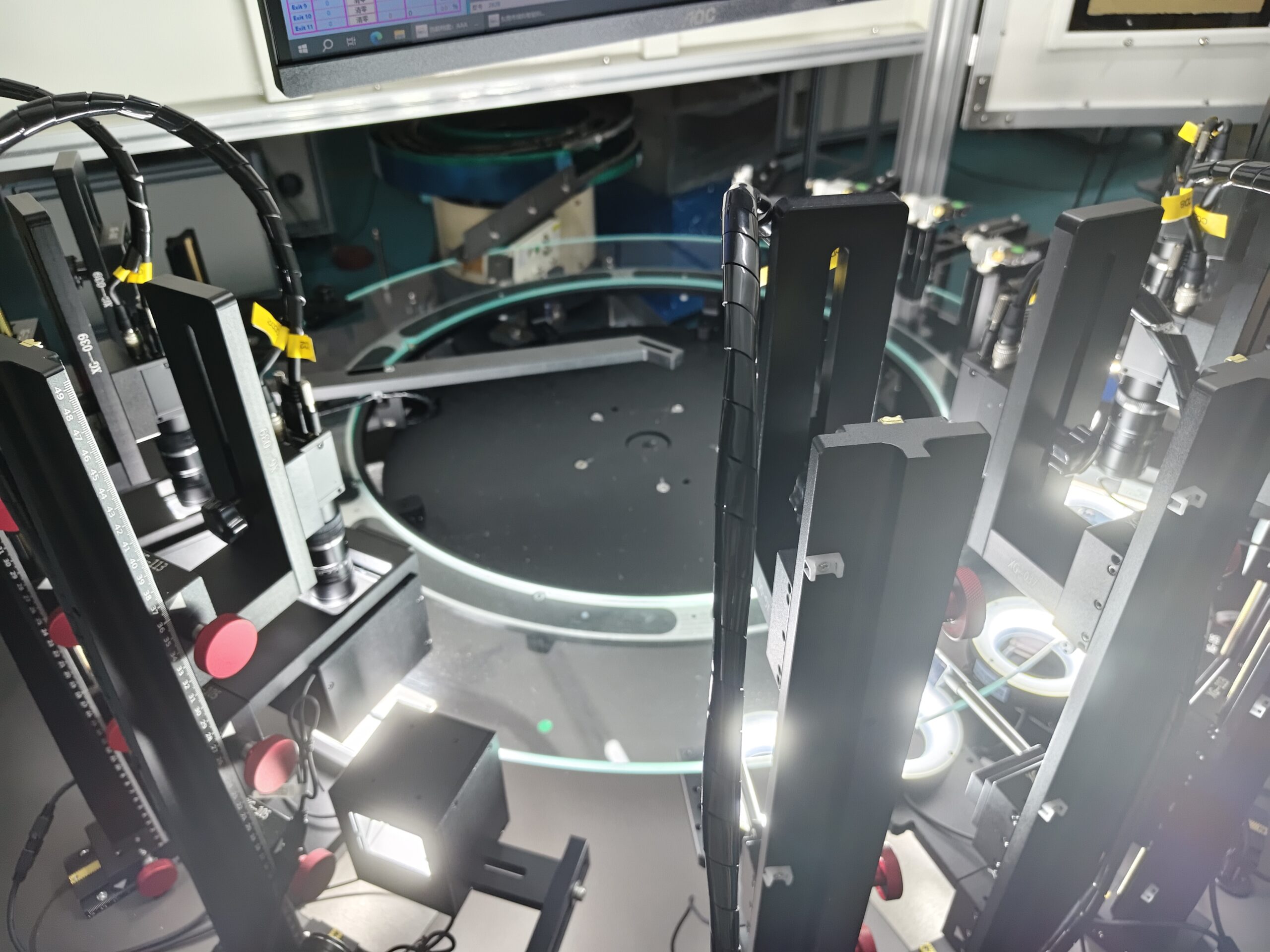

During the inspection process, bolts are automatically fed into the inspection system and positioned for image acquisition. Multiple cameras can capture different areas of the bolt, while dedicated lighting helps improve image contrast and defect image contraibve.
The captured images are then analyzed according to predefined inspection criteria. Products that meet the required conditions are classified as OK, while abnormal products can be identified as NG and separated automatically.
This approach is particularly useful for high-volume fastener production, where maintaining consistent inspection standards can be challenging with manual inspection alone.
Why Inspect Both Appearance and Dimensions?
For hex flange bolts, appearance is only one part of product quality. The geometry of the hexagonal head, flange profile, thread condition and overall dimensions can all influence assembly performance.
Machine Vision Inspection combines these inspection requirements into an automated process, helping manufacturers monitor product consistency throughout production.
For different bolt sizes, materials and inspection requirements, the inspection configuration can also be adjusted according to the product characteristics.
