C Type Nail Sorting Machine is designed to automate the inspection and sorting of C-shaped fasteners used in high-volume manufacturing. With their curved geometry and relatively small size, C-shaped nails can be difficult to inspect consistently by manual visual checking, especially when production volumes are high.
C-shaped fasteners are commonly used for applications such as automotive seat assembly, mattress production, wire fencing and other wire-based connections. Their shape allows them to secure or connect materials efficiently, making dimensional and appearance consistency important during production.
In this inspection application, an automated optical sorting system is used to feed, inspect and separate C-shaped nails according to predefined quality requirements.

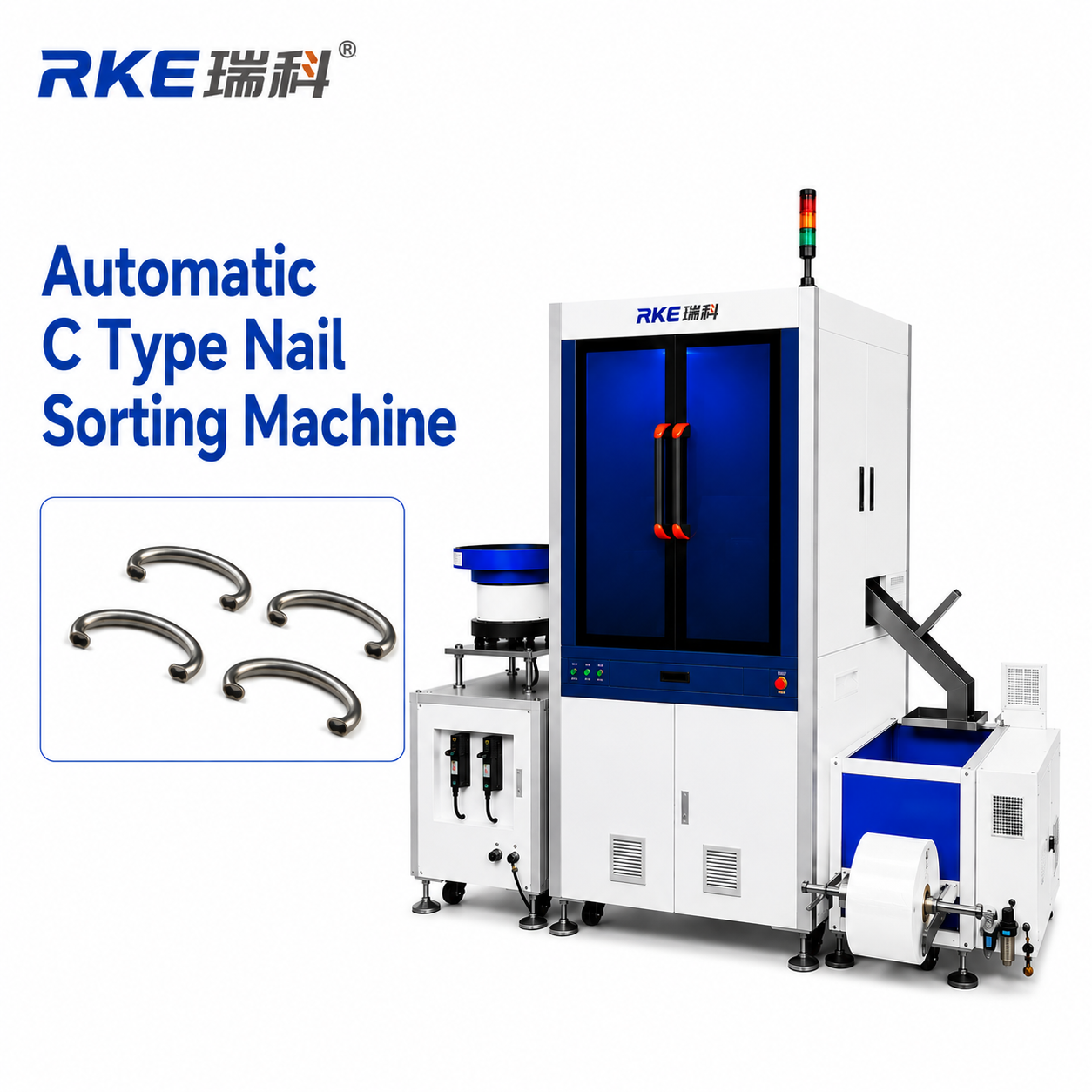

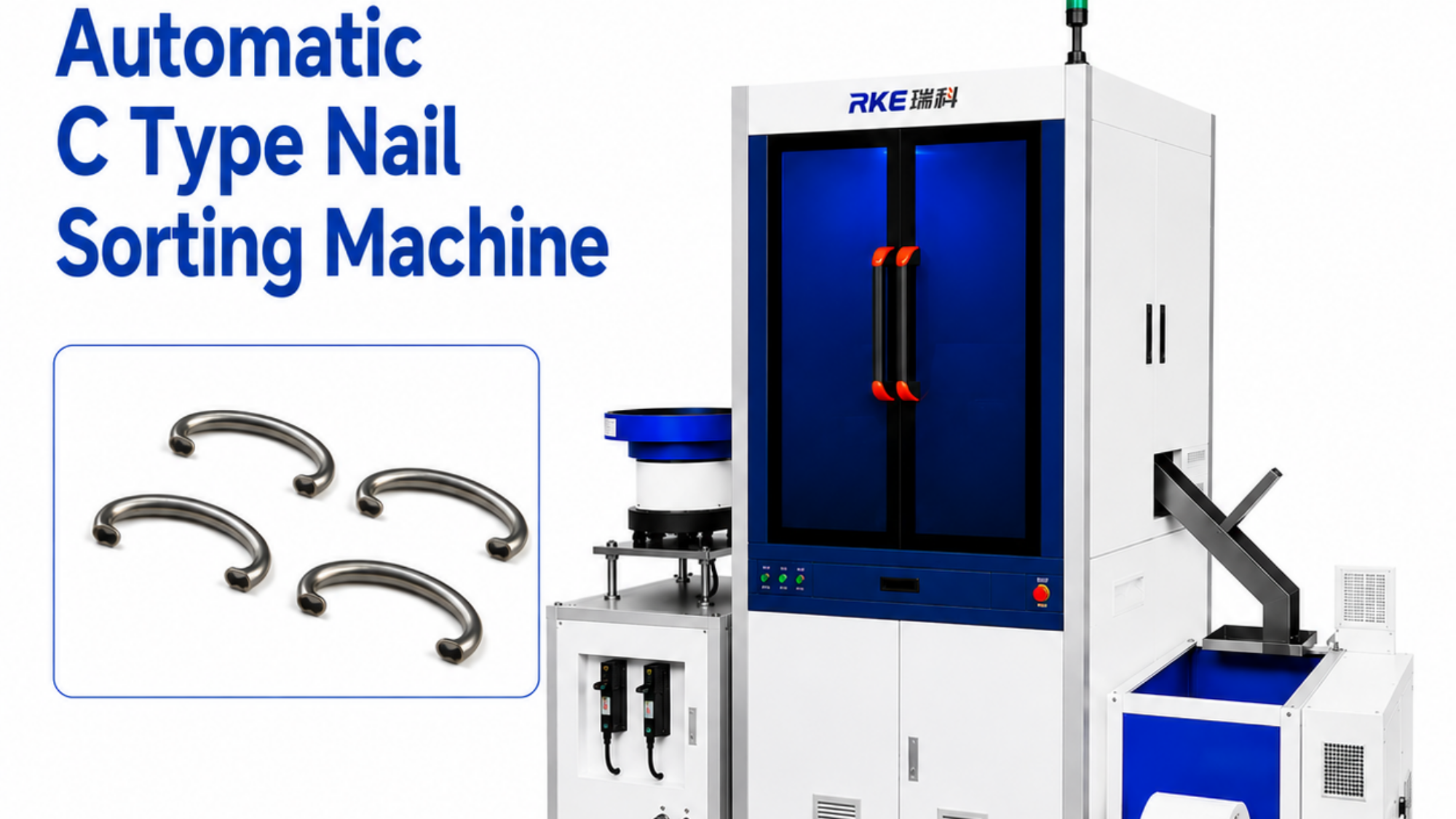

C Type Nail Sorting Machine for automated fastener inspection
Typical Inspection Points for C Type Nails
The inspection requirements for C-shaped nails depend on the product design and application. Typical inspection points can include:
- Overall shape and contour
- C-shaped curvature
- Product dimensions
- Wire diameter
- Opening width
- Overall height and width
- End position and symmetry
- Surface appearance
- Scratches and dents
- Burrs or abnormal edges
- Deformed or incomplete products
- Mixed or incorrectly positioned parts
For curved fasteners, maintaining a consistent profile is particularly important because dimensional variation or deformation may affect feeding, fastening and subsequent assembly.
The inspection criteria can therefore be customized according to the customer’s drawings, tolerance requirements and actual production conditions.

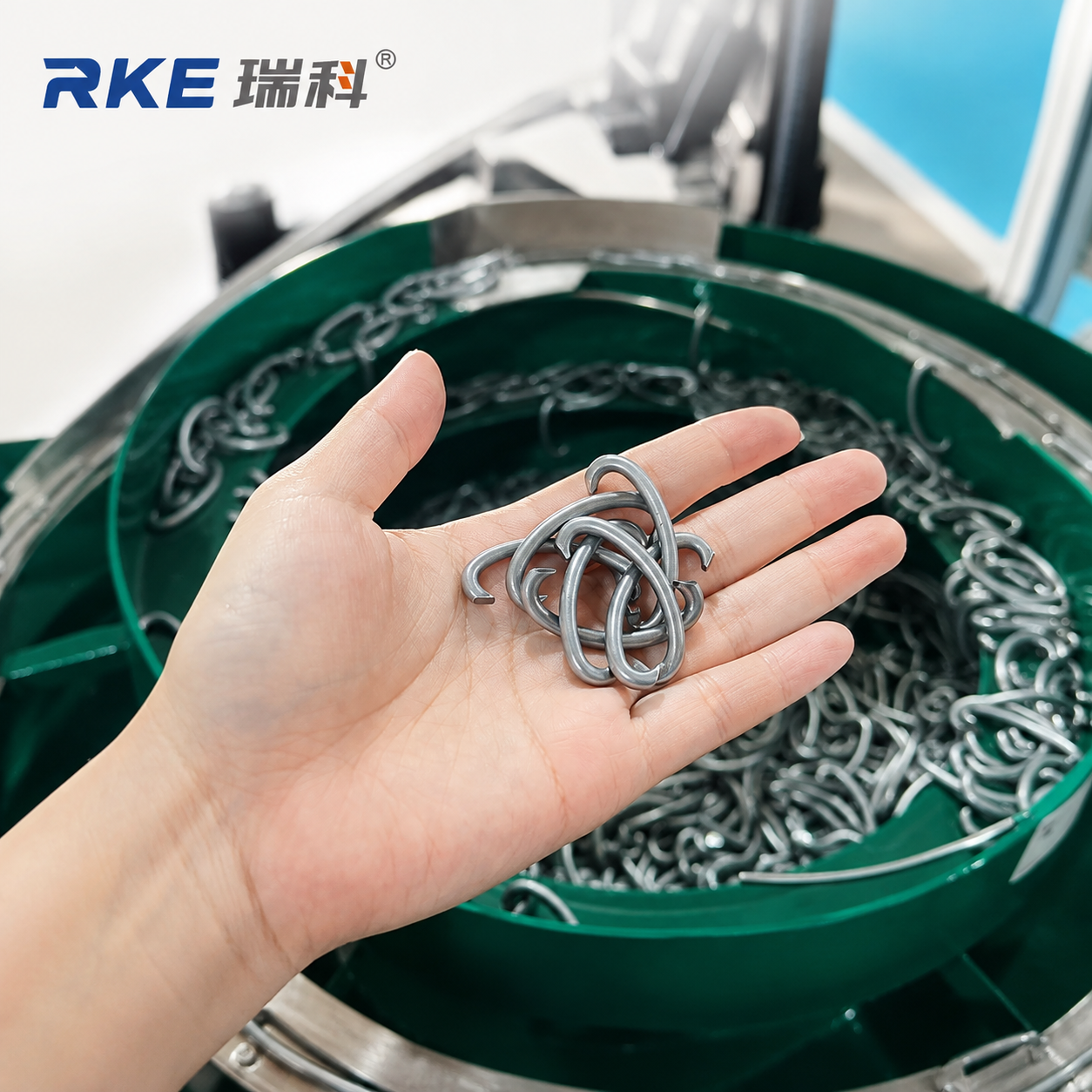

C-shaped nails in an automated feeding system
Automated Feeding and Optical Inspection
Before inspection, C-shaped nails are automatically fed into the inspection system. A controlled feeding mechanism helps present individual products to the inspection area in a suitable position.
Industrial cameras then capture images of the product from selected inspection directions. Image processing technology analyzes the captured images and compares the measured features with predefined inspection criteria.
For complex-shaped fasteners, different viewing directions can be used to examine the product contour and surface condition more effectively. Automated optical inspection is widely used for fasteners because it can combine dimensional measurement, appearance inspection and automatic sorting in one production process.
AI-Assisted Quality Inspection
The C Type Nail Sorting Machine shown in this application uses an AI optical sorting concept to support automated quality control.
According to the system configuration shown in the provided image, the inspection solution is presented with high-precision detection and high-speed sorting capabilities, with the displayed specifications including ±0.01 mm accuracy and speeds of up to 600 pcs/min.
Actual inspection accuracy and production speed can vary depending on the product dimensions, feeding method, inspection requirements and machine configuration.
AI-assisted inspection can also be useful when products have complicated contours or appearance characteristics that are difficult to distinguish through simple manual checking.
Automatic Sorting of OK and NG Products
After image acquisition and analysis, the system determines whether each C-shaped nail meets the predefined inspection requirements.
Qualified products can continue to the OK output, while products with detected abnormalities can be automatically separated as NG products.
This automated process helps reduce dependence on manual visual inspection and provides a more consistent inspection method for repetitive, high-volume production.
For manufacturers producing large quantities of C-shaped fasteners, integrating inspection and sorting into the production line can also help improve production consistency and reduce the possibility of defective products being mixed with qualified products.
A Practical Solution for C-Shaped Fastener Inspection
C-shaped nails may appear simple, but their curved geometry creates several inspection challenges. Shape deformation, dimensional variation, burrs and surface defects can all affect product consistency.
A machine vision-based inspection system provides a way to combine automated feeding, optical inspection, AI-assisted analysis and automatic sorting into one process.
The inspection criteria can be adjusted according to the customer’s product drawings and quality requirements, making the system suitable for different C-shaped fastener specifications and production environments.
For manufacturers looking to improve the consistency of C-shaped fastener inspection, a C Type Nail Sorting Machine can provide an automated alternative to repetitive manual inspection.
